PtMissBuilder Class Reference

Lazily builds reconstructed missing pt. More...

#include <PtMissBuilder.h>

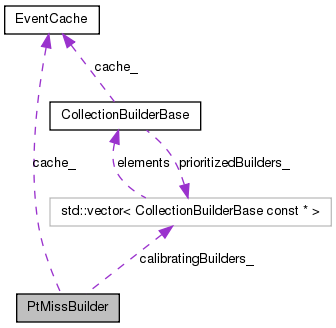

Collaboration diagram for PtMissBuilder:

[legend]

List of all members.

Public Member Functions
	PtMissBuilder (Dataset &dataset, Options const &options)
PtMiss const &	Get () const
	Returns missing pt in the current event.
void	PullCalibration (std::initializer_list< CollectionBuilderBase const * > builders)
	Requests that changes in the total momentum produced by the given builders are propagated into missing pt.
Private Types
enum	Syst { None, UnclEnergyUp, UnclEnergyDown }
	Supported systematic variations.
Private Member Functions
void	Build () const
	Constructs ptmiss in the current event.
Private Attributes
Syst	syst_
	Systematic variation to be applied.
bool	applyEeNoiseMitigation_
	Whether to apply the EE noise mitigation.
EventCache	cache_
	An object to facilitate caching.
std::vector < CollectionBuilderBase const * >	calibratingBuilders_
	Objects registered with PullCalibration.
PtMiss	ptMiss_
	Object representing ptmiss in the current event.
TTreeReaderValue< float >	srcPt_
TTreeReaderValue< float >	srcPhi_
std::optional < TTreeReaderValue< float > >	srcSignificance_
std::optional < TTreeReaderValue< float > >	srcUnclEnergyUpDeltaX_
std::optional < TTreeReaderValue< float > >	srcUnclEnergyUpDeltaY_
std::optional < TTreeReaderValue< float > >	srcDefaultPt_
	Type 1 corrected default ptmiss and ptmiss with EE noise mitigation.
std::optional < TTreeReaderValue< float > >	srcDefaultPhi_
std::optional < TTreeReaderValue< float > >	srcFixedPt_
std::optional < TTreeReaderValue< float > >	srcFixedPhi_

---

Detailed Description

Lazily builds reconstructed missing pt.

Starts from raw missing pt. Type 1 correction, i.e. changes caused by corrections applied to other objects, such as jets, can be included using method PullCalibration. Variations in "unclustered" momentum are applied if requested via the syst option.

If the master configuration contains field fix_ee_2017 in section ptmiss and it is set to true, applies the EE noise mitigation.

---

Member Function Documentation

void PtMissBuilder::PullCalibration

(

std::initializer_list< CollectionBuilderBase const * >

builders

)

Requests that changes in the total momentum produced by the given builders are propagated into missing pt.

For example, changes in jet momenta due to variations in their corrections can be included this way. If this method is called multiple times, new builders are added to the list of already registered builders.

---

Member Data Documentation

std::optional<TTreeReaderValue<float> > PtMissBuilder::srcDefaultPt_ [mutable, private]

Type 1 corrected default ptmiss and ptmiss with EE noise mitigation.

Used when applyEeNoiseMitigation_ is set.

---

The documentation for this class was generated from the following files:

• include/PtMissBuilder.h
• src/PtMissBuilder.cc
